- Specially designed work tables with chromatic treatment which keeps the platform from scratching your material and rusting for at least 10 years.
- Capable of 45º cutting of the intergrated aluminum alloy which is light weight and easily installable in minutes.
- Variable saw blade feeding adjusting for shorter cutting time.
- Oil mist system generated from the vacuum device provides excellent lubrication and cooling. It also prevents chips from collecting on the cutting areas.

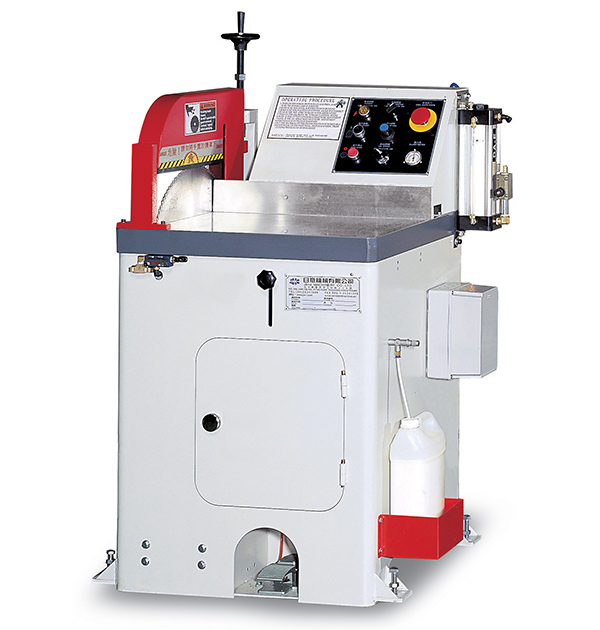

World Power 18
The World Power 18 has many great features for cutting aluminum and steel materials. The saw allows for 90 or 45 degree cutting with a saw blade size of 18″.
Request a Quote
| Specifications / Model | World Power 18 |
|---|---|
| Cutting Angle | 90° or 45° |
| Cutting Capacity | 110 x 110, 100 x 220, 60 x 270, 20 x 300mm |
| Spindle Speed | 3200 RPM |
| Saw Blade Size | 18″ x 1″ Bore |
| Table Area | 640 x 380 mm |
| Table Height from Floor | 860 mm |
| Motor | 5 HP |
| Air Pressure | 4~6 kgs /cm2 |
| Conveyor Length | 1~7 M |
| Net / Gross Weight | 300 / 380 kgs |
| Machine Dimensions (L x W x H) | 840 x 800 x 1250 mm |
| Packing Dimensions (L x W x H) | 960 x 920 x 1450 mm |
