FA-111NC Product Image
FA-111NC Cold Saw

SOCO FA-111NC

This cold saw machine features a digital display of feeding length and programmable counter control panel with movements display for easy troubleshooting.

Request a Quote

    Your Name*

    Your Email*

    Telephone*

    Company Name*

    SKU: FA-111NC Categories: ,

    NC Line

    • 2Dmm ( V type Clamping Jaw ) – The Shortest Crop Length of any machine available in the market ( SOCO Global Patent – SN Models )
    • With the shortest crop lengths, the FA-111NC-SN I 127NC-SN models bring maximum material savings and more production

    Performance

    • Vertical Slide for maximum cutting power and rigidity
    • Standard with Speed Inverter for speeds of 22 – 1DBRPM
    • Electric Servo Feeding for +/- 0.05 – 0.1mm Cutting Length precision (per stroke)
    • Capacity up to 127mm in Tube and 10Dmm in Solid Bars
    • Superior Gear Box design for maximum machine life and performance
    • Flexible Gripper Feeding + Floating Carriage allow for maximum feeding precision even in material which is not perfectly straight
    • Cutting Examples
    • O.D 50mm solid bar, L = 150mm, cycle time is 28sec
    • O.D 75mm steel tube, L = 139mm, cycle time is 11.5sec

    Software

    • Intuitive and User Friendly Interface with Touch Screen system
    • Ability to program multiple cutting lengths per bar
    • Large file storage system
    • Safety Covers ( optional ) for maximum operator protection and comfort

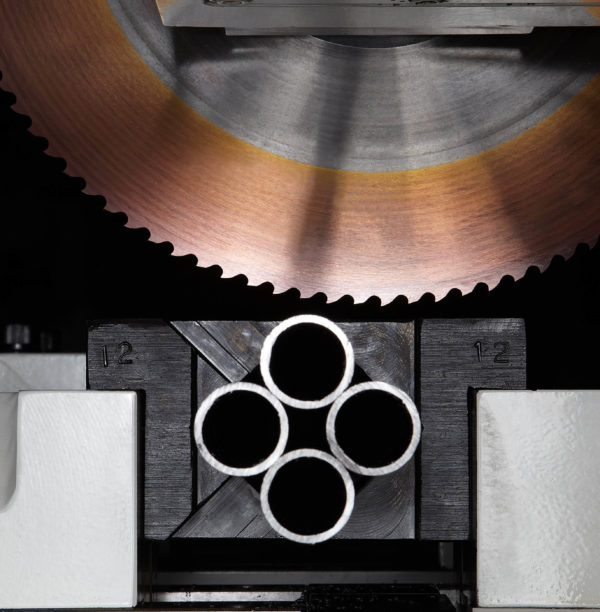

    • Ability to use Flat and Bundle clamps for multiple tubes cutting
    Specification / Model FA-111NC
    Cutting Angle 90°
    Round Tube ?114
    Square Tube 110 x 110
    Solid Round Bar ?75
    Solid Square Bar 70 x 70
    Main Motor (HP / Pole) 5/4
    Arbor RPM (60Hz) 22/108 (Spindle Speed with Inverter)
    HSS Saw Blade Size (mm) ?250 ~ ?370 HSS – Arbor Hole ?32. Pin Hole 2 x ?11 x 63 PCD
    TCT Saw Blade (+) ?285 – ?360 – By Request (+)
    Feeding Length
    • Standard: 10 ~ 550 x Unlimited Times
    • Extended: 10 – 950 x Unlimited Times
    Crop Length 60 + a ( NC Line ) 20 + a ( NC-SN Line ) a = Cutting Length
    Hydraulic System 2HP-4P Pump, Working Pressure 35kg/cm2²
    Cooling System 1/2HP. Water Pump, Automatic Coolant Circulation
    Total Power 9KW
    Weight (Kg)
    • 1600 (Standard)
    • 1700 (Extended)
    Dimensions (cm)
    (L x W x H)
    • Standard: 2200 x 1200 x 1900
    • Extended: 2600 x 1200 x 1900
    • Roller Type Material Input Stand
    • Roller Type Material Output Stand and adjustable length gauge and stopper
