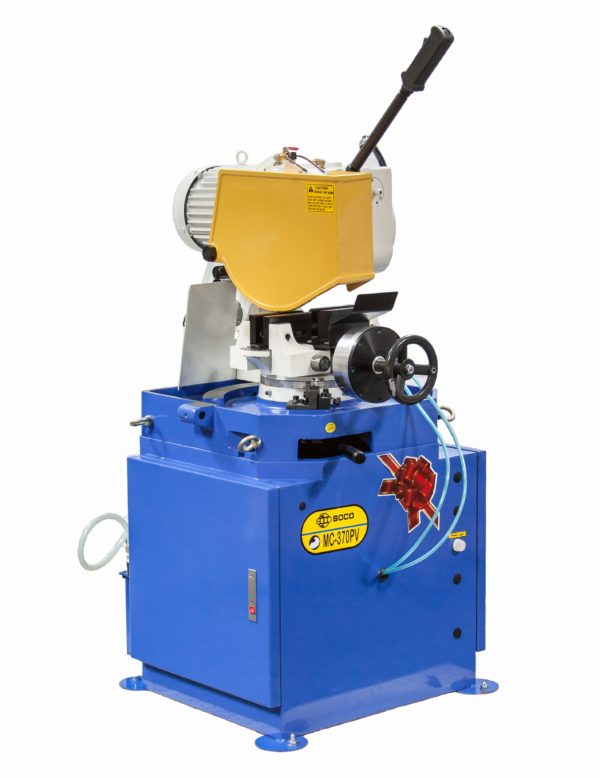

SOCO MC-370PV

Burr Free & Less Dust

Self-Centering vise with two sides clamping to solidly hold the work piece and ensure a smooth and burr free cutting surface. Low operation noise and low pollution working environment

Fast, Precision & Clean

Compared to Band Sawing, Circular Sawing is much more economical, faster in cutting, more precise,and cleaner finish

Mitre Cutting

The Saw Head can be swiveled either direction at various degrees for mitre cutting, providing excellent precision in angle accuracy

Cooling System

Equipped with electrical cooling pump and a large coolant tank to ensure excellent working temperature on the Saw Blade and the Work Piece, as well as a smooth cutting surface and longer blade life

Specifications / Model		MC-370F/PV/AC
Cutting Angle		45°	90°
Cutting Capacity (mm)	Round Tube	?115	?115
	Square Tube	90 x 90	100 x 100
	Rectangle Tube	90 x 90	100 x 100
	Angle Bar	90 x 90	100 x 100
	Solid Bar	?50	?75
	Solid Square Bar	50 x 50	75 x 75
Mitre Cutting		30°-90°-45°
Main Motor	A	3 & 2HP, 2/4Poles
	B	2 & 1.4HP, 4/8Poles
Arbor RPM	A	88/44
	B	22/11
HSS Saw Blade Size		?300 / ?350 / ?370
Cooling System (HP)		1/8
Pressure Air (Kg)		PV/AC
		4 – 6
Weight (kg)		F           PV           AC
		260       270        300
Dimensions (mm) (L x W x H)		1000 x 850 x 1610	1300 x 850 x 1610

Clamping Jaws:

2 part clamps for thin wall tubing

Roller Tables:

RTI: Roller type material input stand
RTO+MS: Roller type material output stand+adjustable length and stopper
