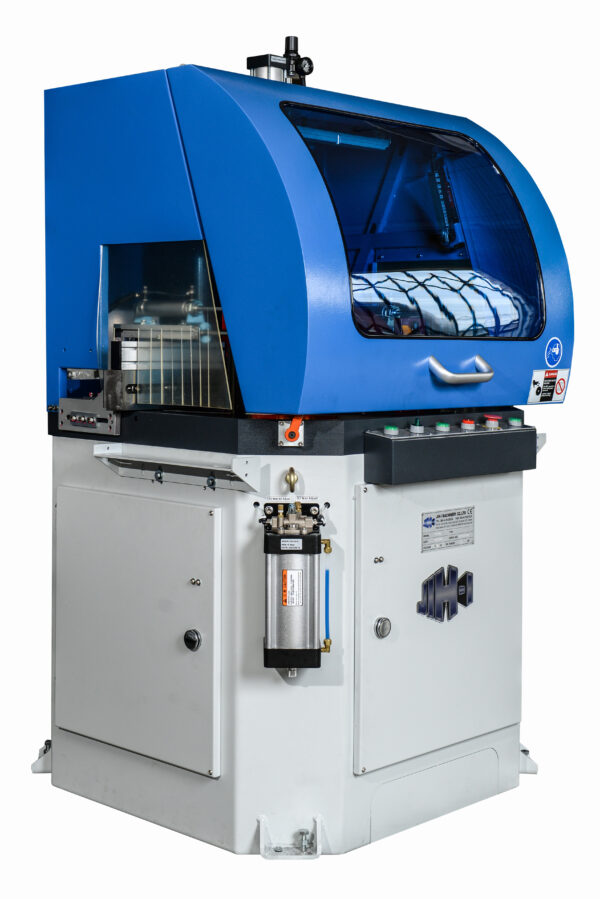

The JIH-20 has many great features for cutting aluminum and steel materials. The saw allows for 45 degree cutting with a saw blade size of 20″.

Request a Quote

    Your Name*

    Your Email*


    Company Name*

    SKU: JIH-20 Categories: ,


    Suitable For Cutting Various Materials

    Aluminum, brass, heat sink, PVC, plastic steel, bakelite, acrylic plastic, teflon, honeycomb board, wood and other non-ferrous metals.


    • To operate the machine, simply treadle on the foot switch, the machine will automatically perform clamping and cutting for convenient operation.
    • Concealed saw blade performs upward cutting. Single or multiple work pieces can be cut simultaneously.
    • While cutting, the oil mist splashes automatically for cooling and lubrication.
    • Cutting feed is driven by a hydraulic pneumatic combination cylinder for extremely stable cutting speed.
    • The machine cabinet painting is baked by high temperature of 200 degree ( Powder coating ) for resisting bumping without paint peeling off.
    • The machine permits ± 0 ~ 45 degree cutting.
    Model JIH-20 TYPE
    Cutting Angle +45° ~ 0° ~ -45°
    Saw blade Sizes 20″x1″bore
    Spindle Speed 2,800 R.P.M.(60 HZ)
    Motor 7.5 HP
    Air Pressure 4-6 kgs/cm²
    Table Area 772 x 386 mm
    Table Height Form Floor 875mm
    Net/Gross Weight 500 / 610kgs
    Machine Dimensions
    ( LxWxH )
    Packing Dimensions
    ( LxWxH )

    Additional information

    Weight 880 lbs
    Dimensions 48 × 36 × 60 in
