Single End Chamfering (EF Series)

  • Read more

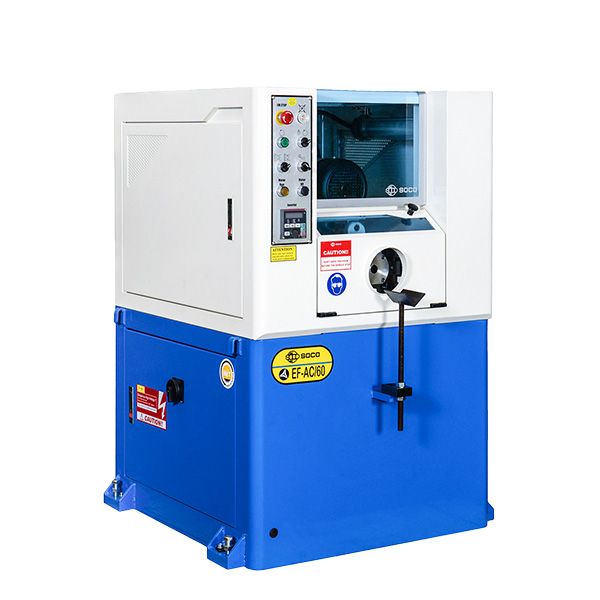

    SOCO EF-AC/60

    SOCO Single End Chamfer Series, Model EF-AC/60. This Single End Chamfering machine is capable of chamfering up to 2 ½" Round OD. Chamfering one end of the tube at a time, with pneumatic vice grip and a three-point cutting head able to process OD, ID and squareness all in a single step.

  • Read more

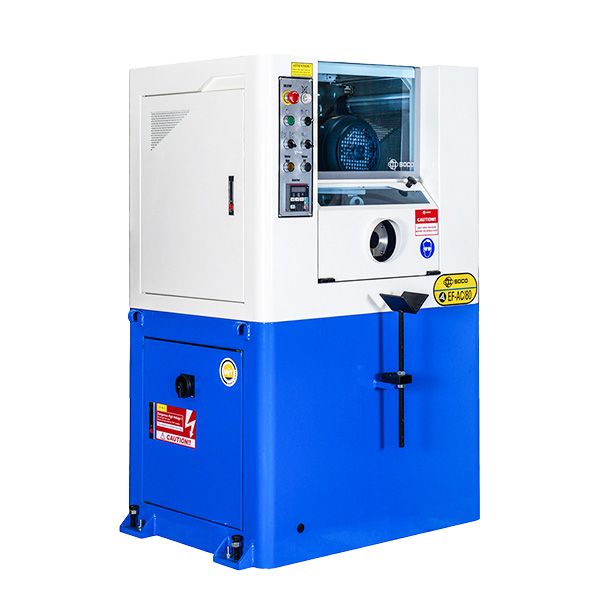

    SOCO EF-AC/80

    SOCO Single End Chamfer Series, Model EF-AC/80. With the same one-step process as EF-AC/60 our EF-AC/80 takes OD chamfering to 3 ½". This Single End Chamfering unit is equipped with a 3hp motor.

  • Read more

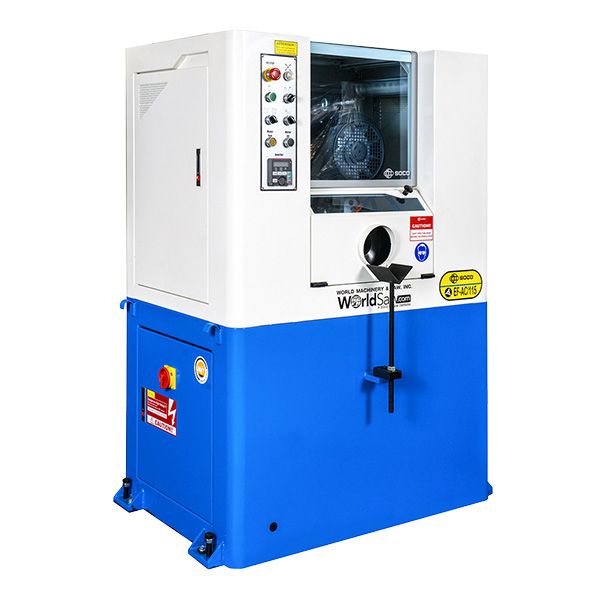

    SOCO EF-AC/115

    SOCO Single End Chamfer Series, Model EF-AC/115. Our largest Single End Chamfering unit! This machine is built with a strong base eliminating vibrations which result in chattering. Equipped with a 5hp motor and a Max. capacity of 5.0" makes this the best unit for thick wall and bar-stock material.

The SOCO EF series of chamfering machines extend up to ?115mm in capacity. These semi-automatic machines offer specific clamps for each tube size various tube profiles (EF-AC/115). The process is suitable for single tube end chamfering and is available for solid bars.

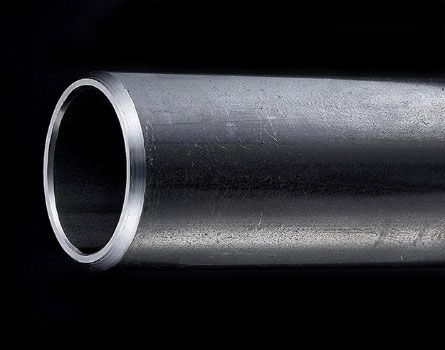

  • Evenly chamfers the inside, outside and face of the tube simultaneously.
  • Different rotation speeds for various materials and requirements.
  • 2 Step chamfering process:
    • First speed: Fast approach for time saving.
    • Second speed: Infinitely adjustable speed for smooth finish.

Double End Chamfering (DEF Series)

  • DEF-FA/52 Product Image Chamfering Machine Read more

    SOCO DEF-FA/52

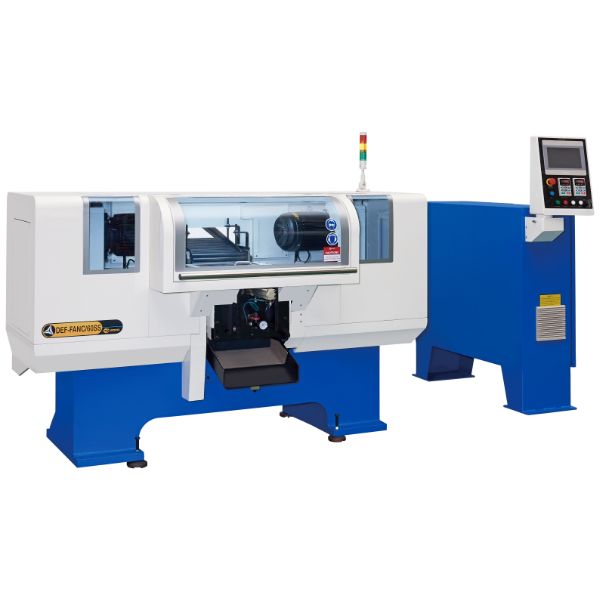

  • DEF-FA/60SS Product Image Chamfering Machine Read more

    SOCO DEF-FA/60SS

    SOCO Double End Chamfer Series, Model DEF-FA/60SS. This Double End Chamfering machine is capable of chamfering up to 2 ½" Round OD. Chamfering both ends simultaneously. Hydraulic powered clamp jaws and a three-point cutting head able to process OD, ID and squareness all in a single step.

  • DEF-FA/85SS Product Image Chamfering Machine Read more

    SOCO DEF-FA/85SS

    SOCO Double End Chamfer Series, Model DEF-FA/85SS. Double End Chamfering machine with a Max. capacity of 3 ½" Round OD. Able to chamfer both ends simultaneously, best designed for short pieces.

  • DEF-FA76-V Product Image Chamfering Machine Read more

    SOCO DEF-FA/76-V

DEF Series

Double End Chamfering Machines

The DEF series of chamfering machines are ideal for working lengths of 25mm – 300mm. With an optional BTM loader, the machines offer a completly automatic loading, feeding and chamfering process.

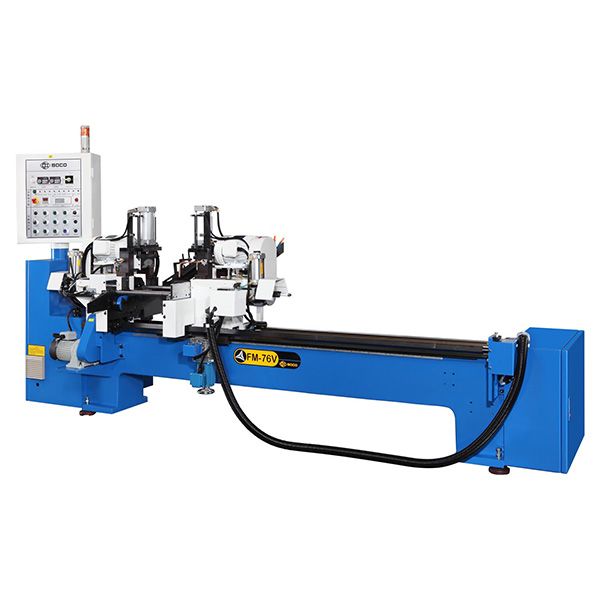

FM Series

With the SOCO FM series for chamfering and length measuring, it is possible to simultaneously chamfer both ends of a tube with up to 3000mm in working length and measure tolerances as low as +/- 0.02mm.

Using an absolute length measuring system (against a calibrated piece), the machine may also be programmed to stop after a certain number of pieces fail to fall within the specified length tolerance.

With an optional BTM (Bundle Loading Magazine), the machine offers a completely automatic loading, feeding and length measuring process.
